FLA4 / FLA4+



LINEAR FIREPLACE WITH ADVANCED BEV (BURNING ETHANOL VAPOURS) TECHNOLOGY

FLA4 is world’s first “intelligent fireplace” with patented BEV (Burning Ethanol Vapours) Technology created by Planika engineers. This long, line fireplace insert comes with all state-of-the-art solutions like temperature, seismic and tilting sensors, wireless control, and an automatic refuelling system. FLA4 is also available as FLA4+ – it provides same technological solutions with even more capacious tank. This fireplace can be easily customized to meet all individual needs of Planika clients.

CUSTOMIZABLE FINISH OPTIONS

WIRELESS CONTROL – REMOTE OR MOBILE APP

OPTIONAL SHS

AUTOMATIC REFUELLING SYSTEM

AVAILABLE WITH EXTRA-LARGE FUEL TANK (FLA4+)

FLA4

-       Insert height: 220 mm

-       Capacity: 3,1 L -14,8 L

-       Max burning time up to: 5-10 hrs

-       Flame height: 6 stages

-       Length: 590-2490 mm

-       Remote control: Yes

-       SHS: Optional Extra



FLA4+

-       Insert height: 305 mm

-       Capacity: 9,6 L -45,9 L

-       Max burning time up to: 16-31 hrs

-       Flame height: 6 stages

-       Length: 590-2490 mm

-       Remote control: Yes

-       SHS: Optional Extra



TECHNICAL SPECIFICATION

Flue – Not required

Fuel type – Bioethanol 95 – 96,6%

Power supply – 230V

Finish – Black powder coating

Materials – Steel, galvanized steel toughened glass

Application – For indoor use only



LUXURY FIREPLACE IN VARIOUS SHAPES

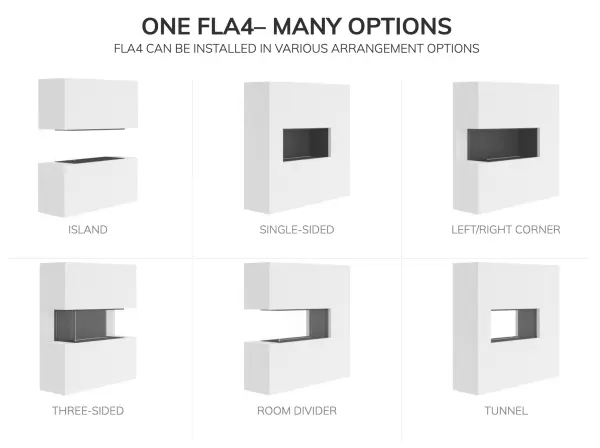

FLA4 with BEV (Burning Ethanol Vapours) Technology is a zero-clearance fireplace that can be quickly installed in built-ins made of various materials, even flammable ones such as wood. This makes it possible to create a variety of real fire arrangements without design restrictions.



AUTOMATIC REFILLING SYSTEM

Planika was the first to introduce the automatic refilling system for bioethanol fireplaces. An automatic pump allows you to refill the fireplace quickly and effortlessly. All it takes in connecting the pump with an integrated panel and putting the other pipe to the bottle with fuel and pushing the button. Once the tank is full, the pump switches off automatically. This protects the user and the fireplace from any accidental spillage or overfilling.



INNOVATIVE TOUCH PANEL CONTROL

One of the ground-breaking features of the FLA4 fireplace is its modern touch panel control, seamlessly concealed behind a flap for an elegant finish. This intuitive interface provides users with the capability to effortlessly adjust and monitor the fireplace’s settings. With a simple touch, you can gauge the fuel status, modify the flame’s intensity, and even set an automatic shut-off timer for added peace of mind. Concerned about the safety of your little ones? The child lock option ensures that curious fingers won’t accidentally ignite the fireplace. For those who desire a complete lockdown of the control panel, the device lock offers an added layer of security. These enhancements not only elevate user convenience but also prioritize safety, marrying innovation with practicality in the FLA4 design.





NET ZERO FIREPLACE

Planika bioethanol fireplaces with BEV Technology provide a net zero combustion, meaning they produce only a minimal amount of CO2 that can be compared to what one person exhales. Bioethanol which fuels Planika automatic fireplaces is made of corn, wheat, or potatoes. These plants absorb CO2, which contributes to its continuous circulation in nature. Thanks to this, these innovative fireplaces can be used in cities that regulate or prohibit emission of fossil fuels.



SAFETY FIRST

For over 20 years, Planika has been a pioneer in bioethanol fireplaces safety. Our solutions are protecting the customers around the world. Now you can get all of them in one FLA4 fireplace.



TEMPERATURE SENSORS

Multiple temperature sensors are installed in areas where heat is generated. Their sensitivity to temperature changes reaches 0.1 degrees and they react immediately to any undesirable changes.



FUEL LEVEL SENSOR

To ensure that the combustion process runs smoothly, the fireplace has been equipped with a fuel level sensor. If the level of the liquid fuel in the main tank is too low, the FLA4 switches off automatically and sends the information to the user. You can check the amount of the fuel any time in the dedicated FLA4 NET ZERO app.



SEISMIC SENSORS

To meet the demands of our customers who live in areas of increased seismic activity, we’ve introduced a dedicated seismic sensor that will shut off the device if it detects vibrations. It will also react if the device is hit.



SPILLAGE SENSOR

Since we’re dealing with bioethanol, it’s always good to have a system of spillage detection on board. Deliberately tilted bottom of the device will ensure, that any hypothetical drop of fuel will fall right on the sensor.



ROBUST CONSTRUCTION

At Planika, we make sure that our products meet the highest quality standards and pass mechanical, chemical and temperature resistance tests. Both the top plate of the burner and the fuel tank are made of stainless steel to provide high performance.



FUEL RETRIEVAL SYSTEM

FLA4 is equipped with a system that redirects unused liquid fuel from the vapour generator and transports it back to the fuel tank when the device is not in use. The same situation occurs when the fireplace detects any unusual situation and shuts down automatically.
